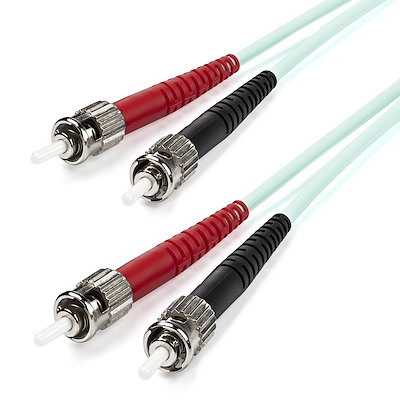

1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord

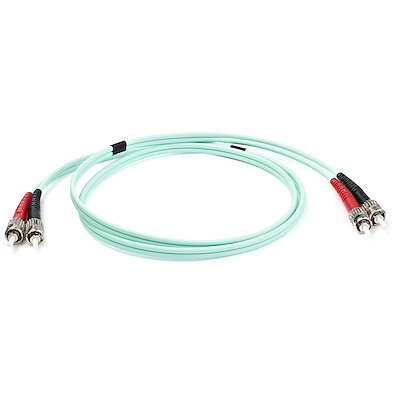

1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord - Image 2

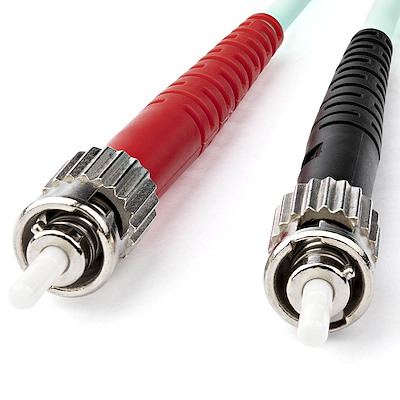

1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord - Image 3
,

1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord

Availability:

2 in stock
Add to wishlist
Compare
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; ST/ST connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM3 ST/ST multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
  • SPECS: 1m (3.3ft); Color: Aqua (OM3); ST/ST UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

$12.42

2 in stock

Compare
erfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with ST connectors on both ends, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds.Suited for a broad range of environments, A50FBSTST1 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Applications

  • Telecommunication / Data communication
  • Used in 10 Gigabit high speed network environments
  • Broadband systems
  • Ideal solution for data applications requiring high speed data transmission
SKU: A50FBSTST1 Categories: , Tags: , , , , ,

Specifications

Warranty Information
Warranty
Lifetime
Connector(s)
Connector A
1 – Fiber Optic ST Duplex
Connector B
1 – Fiber Optic ST Duplex
Environmental
Humidity
0~90% RH
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Hardware
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
Fiber Size
50/125
Packaging Information
Package Quantity
1
Package Length
8.0 in [20.3 cm]
Package Width
0.8 in [2.0 cm]
Package Height
8.7 in [22.0 cm]
Shipping (Package) Weight
1.4 oz [40.0 g]
Performance
Maximum Data Transfer Rate
100Gbps
Cable Rating
1Gbps / 10Gbps / 40Gbps / 100Gbps
Fiber Classification
OM3
Type
Multi Mode
Wavelength
850nm
Physical Characteristics
Product Width
0.0 in [0.0 cm]
Product Height
0.0 in [0.0 cm]
Weight of Product
1.1 oz [32.0 g]
Color
Aqua
Cable Length
3.3 ft [1 m]
Diameter
3mm
Product Length
3.3 ft [1.0 m]
What’s in the Box
Included in Package
1 – 1m 10 Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable ST – ST
