4 Port USB to RS232 Serial DB9 Adapter Hub
4 Port USB to RS232 Serial DB9 Adapter Hub - Image 2
4 Port USB to RS232 Serial DB9 Adapter Hub - Image 3
4 Port USB to RS232 Serial DB9 Adapter Hub - Image 4

4 Port USB to RS232 Serial DB9 Adapter Hub

Availability:

2 in stock
Add to wishlist
Compare
  • Provides you with four additional RS232 serial ports
  • Bus powered, no external power adapter required
  • Easy Plug-and-Play installation
  • Fully compliant with USB 1.1 specifications and compatible with USB 2.0

$114.85

2 in stock

Compare
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com’s Lifetime Warranty.

Applications

  • Connect modems, digitizer tablets, mice, bar code scanners, GPS receivers, ISDN terminal adapters, mobile phones, scanners, UPSes and POS equipment to your system
  • Connect and program LED and Digital signage boards with serial communication ports
SKU: ICUSB2324 Category: Tags: ,

Specifications

Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 – USB 2.0 Type-A (4 pin, 480Mbps)
External Ports
4 – DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20 to 85°C (-4 to 185°F)
Humidity
5~95% RH
Hardware
Ports
4
Interface
Serial
Bus Type
USB 2.0
Port Style
External Hub
Industry Standards
RS232
USB 1.1
Chipset ID
FTDI – FT232RL
Packaging Information
Package Height
2.0 in [5.2 cm]
Package Length
8.5 in [21.6 cm]
Shipping (Package) Weight
13.0 oz [368.0 g]
Package Width
5.9 in [15 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
FIFO
256 Bytes
Physical Characteristics
Weight of Product
6.2 oz [175 g]
Color
Black
Material
Plastic
Cable Length
6.0 ft [1.8 m]
Product Length
5.9 in [15 cm]
Product Width
2.6 in [6.6 cm]
Product Height
1.0 in [2.6 cm]
Power
Power Consumption (In Watts)
1 ~ 1.5W
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux Kernel 3.0.x and up – LTS Versions only
Special Notes / Requirements
System and Cable Requirements
One free USB port

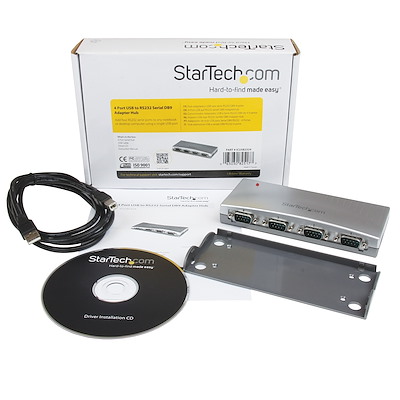

What’s in the Box
Included in Package
1 – 4 Port Serial Hub
1 – USB Cable
1 – Mounting Bracket
1 – Driver CD
1 – Instruction Manual
