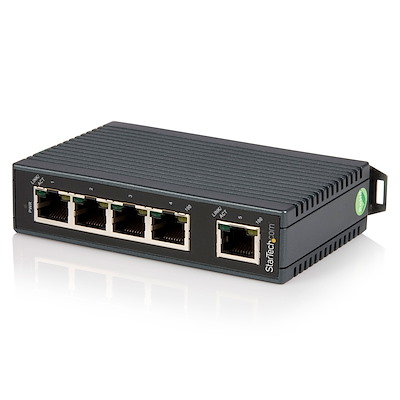

5-Port Industrial Ethernet Switch – DIN Rail Mountable
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
- Wider range of operating temperatures, ideal for industrial environments
- IEEE 802.3az Energy-Efficient Ethernet
- Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
- Supports IEEE 802.3x flow control and back pressure
- Store-and-forward switching mechanism
$95.65
CompareConquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

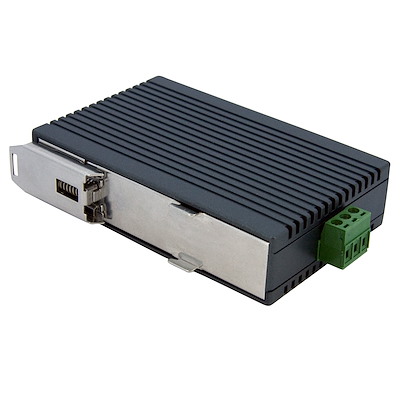

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Well suited for networks in demanding industrial applications such as warehouses and factories
- A great way to enhance network connectivity, adding small workgroups to an existing network
- Install in a server rack or cabinet in a network room or test lab environment
Compatibility
OS Independent; No additional drivers or software required
Specifications
Warranty Information
Warranty
2 Years
Auto-Negotiation
Yes
Connector(s)
External Ports
5 – RJ-45

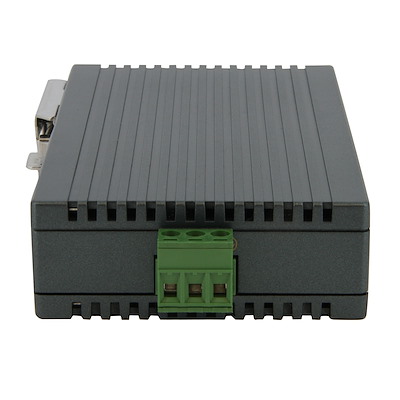

1 – Terminal Block (3 Wire)
Environmental
Operating Temperature
-10°C to 60°C (14°F to 140°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
5~95% RH (Non-Condensing)
Hardware
Ports
5
Interface
RJ45 (10/100 Ethernet)
Regulatory Approvals
EN61000-6-2
EN61000-6-4
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock)
EN61000-6-4
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock)
Industry Standards
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
IEEE 802.3az (Energy-Efficient Ethernet)
IEEE 802.1P Quality of Service (QoS)
Indicators
LED Indicators
1 – Power
5 – Link/Activity
5 – Activity (100 Mbps)
Packaging Information
Package Height
3.2 in [8.2 cm]
Package Length
7.9 in [20.0 cm]
Shipping (Package) Weight
10.7 oz [304.0 g]
Package Width
6.9 in [17.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
200 Mbps (Full-Duplex)
Maximum Cable Length
328.0 ft [100 m]
Buffer Size
56 KB
Flow Control
IEEE 802.3x Full-Duplex
Surge Protection
ESD: EN61000-4-2
Surge: EN61000-4-5
Surge: EN61000-4-5
Compatible Networks
10/100 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
No
Switching Architecture
Store-and-Forward
MTBF
1,179,133 Hours
Physical Characteristics
Weight of Product
5.3 oz [150 g]
Color
Black
Material
Plastic
Product Length
2.8 in [70 mm]
Product Width
1.0 in [2.5 cm]
Product Height
4.3 in [11 cm]
Power
Power Source
Terminal Block
Input Voltage
12 ~ 48 DC
Output Voltage
12V DC
Power Consumption (In Watts)
2.12W Max
Software
OS Compatibility
OS Independent; No additional drivers or software required
What’s in the Box
Included in Package
1 – 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
1 – Terminal Block
1 – Instruction Manual CD
