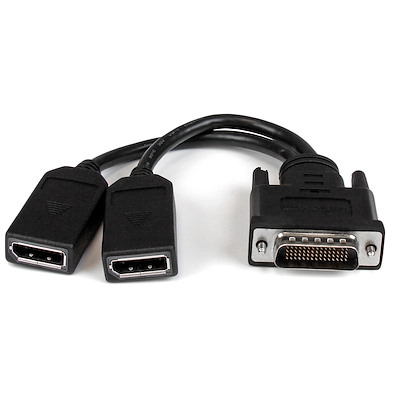

8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors

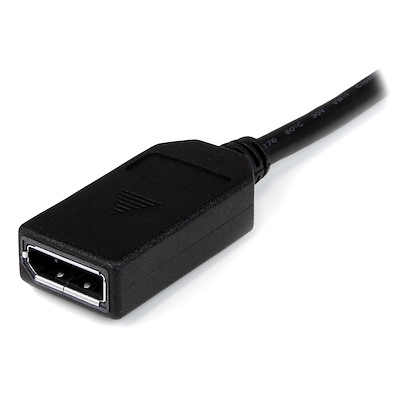

8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors - Image 2

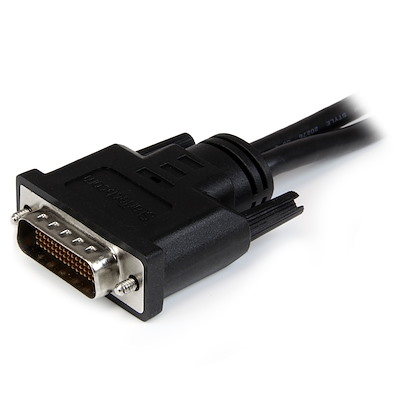

8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors - Image 3

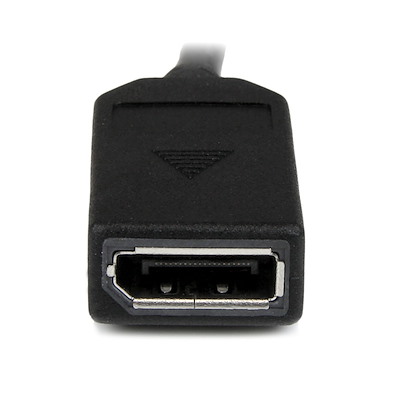

8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors - Image 4
8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors - Image 5
, ,

8″ (20 cm) DMS-59 to Dual DisplayPort Adapter Cable – 4K x 2K Video – LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable – LFH Graphics Card to Dual DP Monitors

Availability:

2 in stock
Add to wishlist
Compare
  • DMS-59 TO DUAL DISPLAYPORT ADAPTER CABLE: This 7.8 in (20 cm) DMS-59 P to 2x DP v1.2 extension cable (male to 2x female connectors) supports 4K x 2K video (3840 x 2160 60Hz), 1920 x 1200p, Full HD 1080p, 21.6 Gbps bandwidth, HBR2
  • RELIABLE DESIGN: Durable and flexible molded PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Cost-effective replacement for damaged or misplaced DMS-59 to dual DisplayPort splitter y cables
  • QUALITY CONSTRUCTION: 32AWG wire and EMI shielding with Aluminium foil and Braid provide superior signal integrity and reliability for higher quality video and audio; Use this DMS-59 to DisplayPort cable with DMS/LFH 59 graphics cards
  • APPLICATIONS: Split the video from a LHF graphics card to two DP UHD/4K monitors/projectors/displays w/ this LFH cable; Ideal for home/office/classroom works w/ professional workstations with ATI Radeon X1300, NVIDIA Quadro NVS 440, Matrox Xenia, HP, PNY
  • SPECS: 7.8 inch (20 cm) | Black | Dual Monitor Solution (DMS), 59 pins | Male DMS 59P Plug to 2x Standard DP Female adapter cable | 32 AWG, 0.2″(5.5mm) Outer Diameter | PVC cable jacket | EMI Shield: Aluminium foil with Braid

$23.72

2 in stock

Compare
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors.The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®, PNY, ATI and HP.Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability – making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.

Applications

  • Connect two DisplayPort monitors to a single DMS / LFH 59 or DMS / LFH 60 graphics card port
SKU: DMSDPDP1 Categories: , , Tags: ,

Specifications

Warranty Information
Warranty
Lifetime
Connector(s)
Connector A
1 – DMS-59 (59 pin)
Connector B
2 – DisplayPort (20 pin)
Hardware
Connector Plating
Nickel
Cable Jacket Material
PVC – Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid
Packaging Information
Package Height
0.7 in [17.0 mm]
Package Length
11.4 in [29.0 cm]
Shipping (Package) Weight
3.0 oz [86.0 g]
Package Width
5.7 in [14.5 cm]
Package Quantity
1
Physical Characteristics
Weight of Product
2.8 oz [79.0 g]
Color
Black
Connector Style
Straight
Wire Gauge
32 AWG
Cable Length
8.0 in [203.2 mm]
Product Length
8.0 in [20.3 cm]
Product Width
1.6 in [4.1 cm]
Product Height
0.6 in [1.5 cm]
What’s in the Box
Included in Package
1 – 8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable
