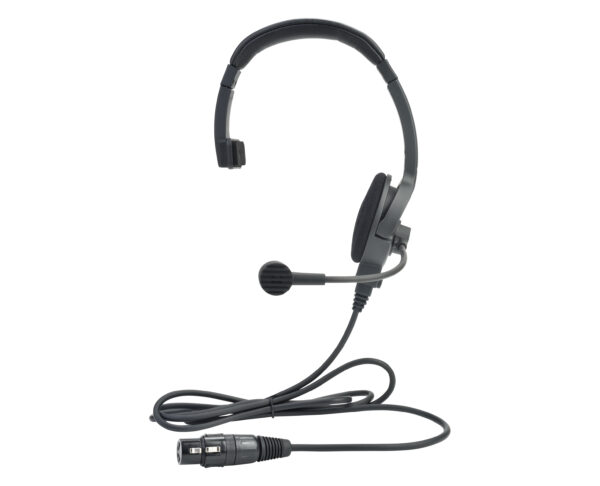

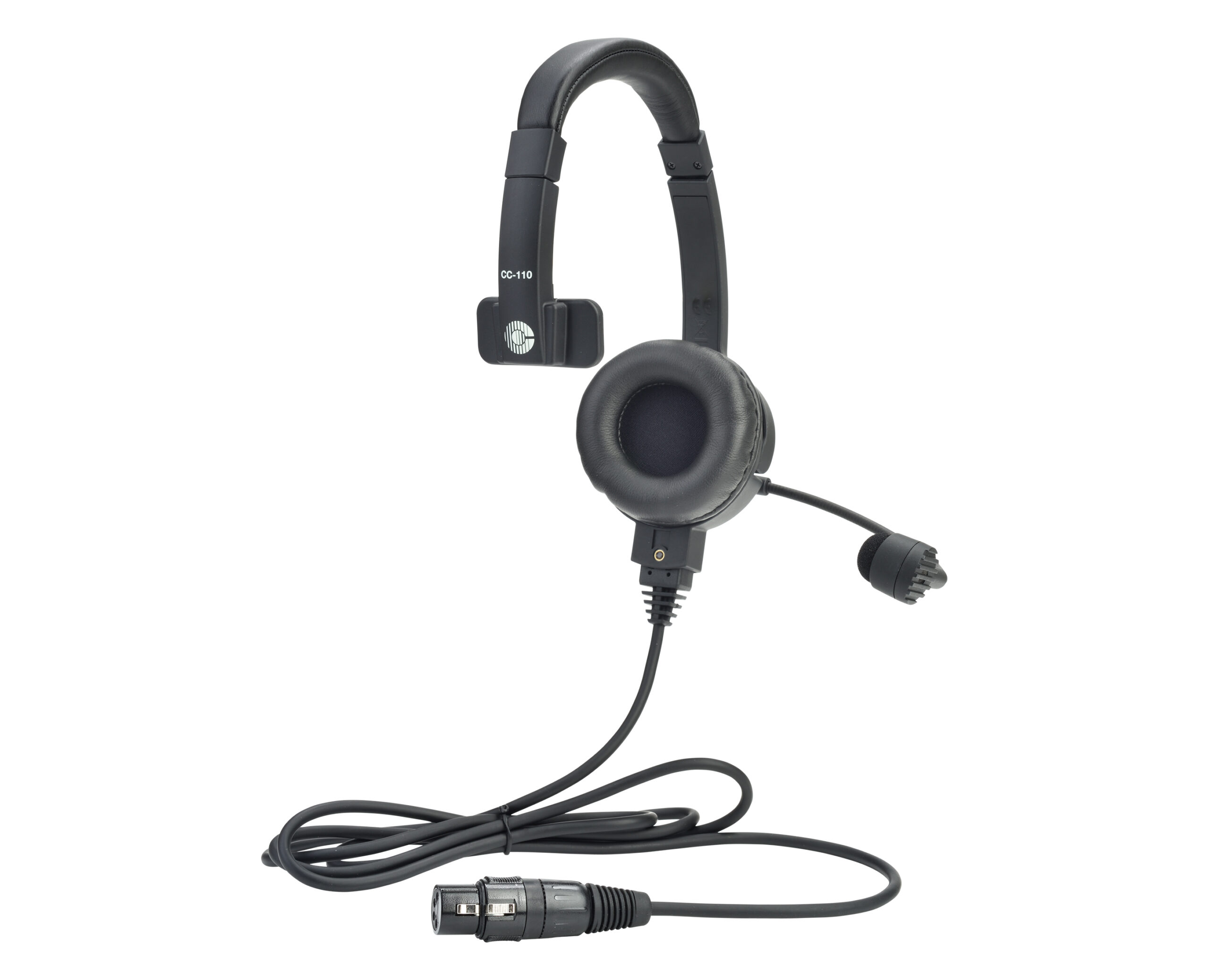

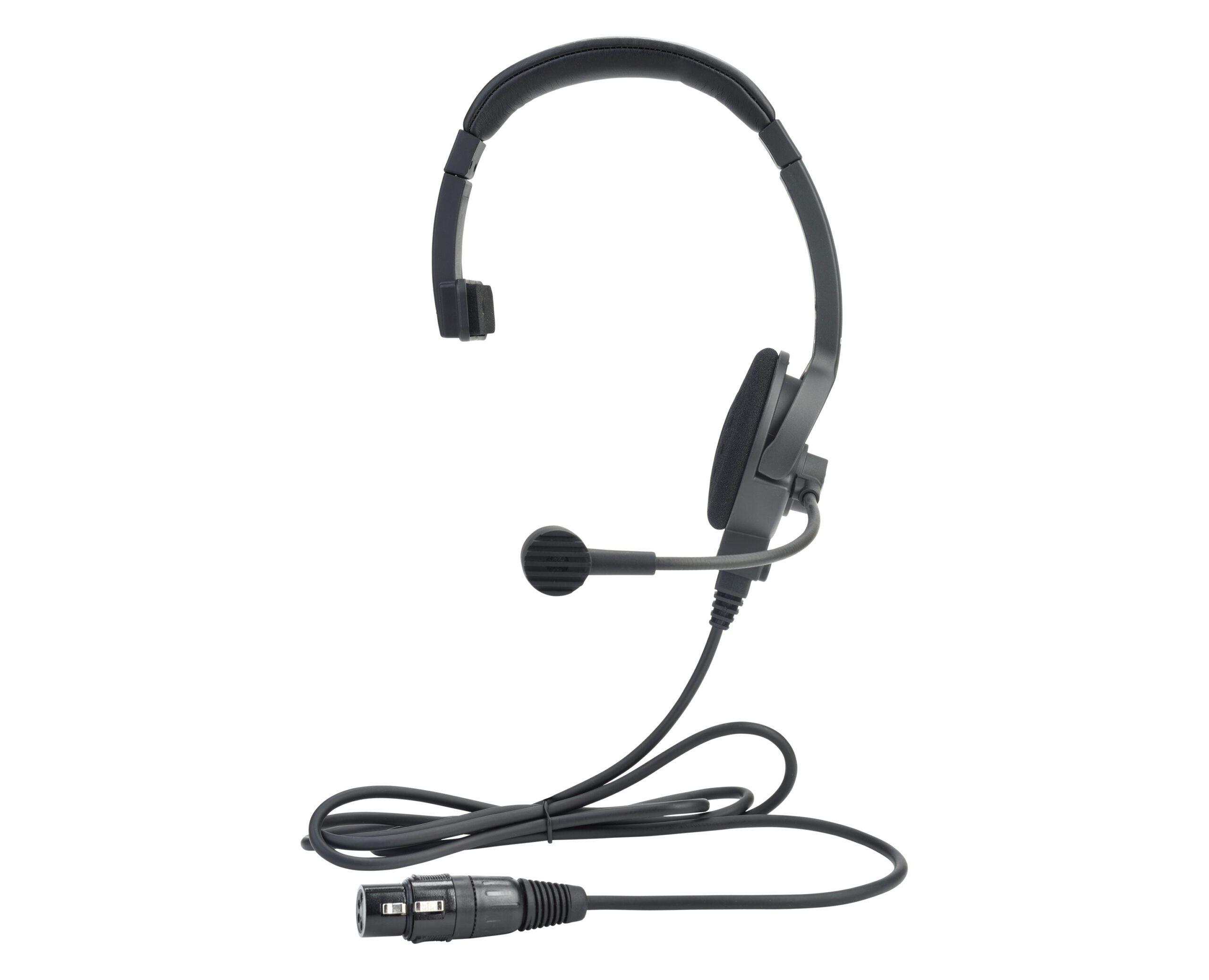

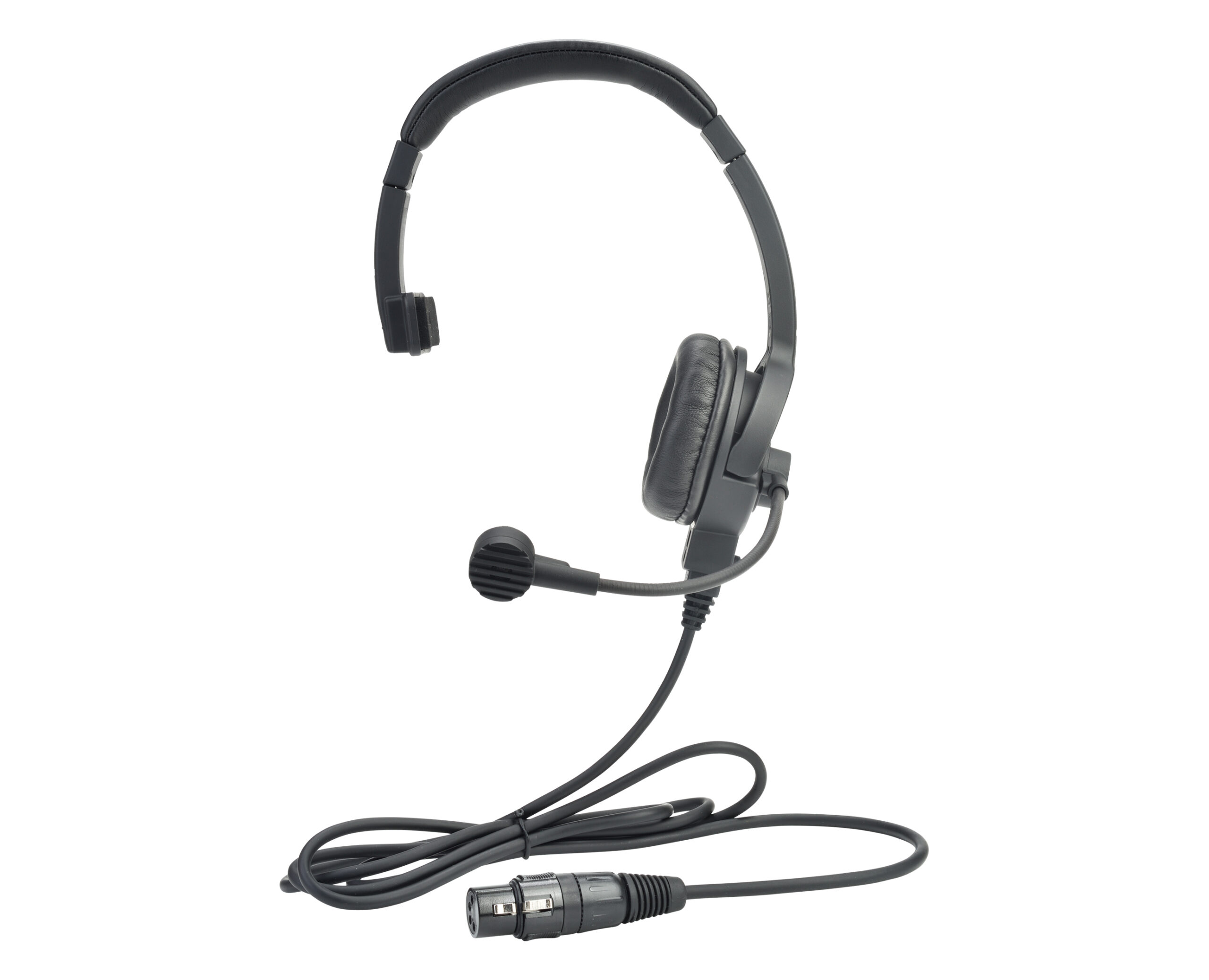

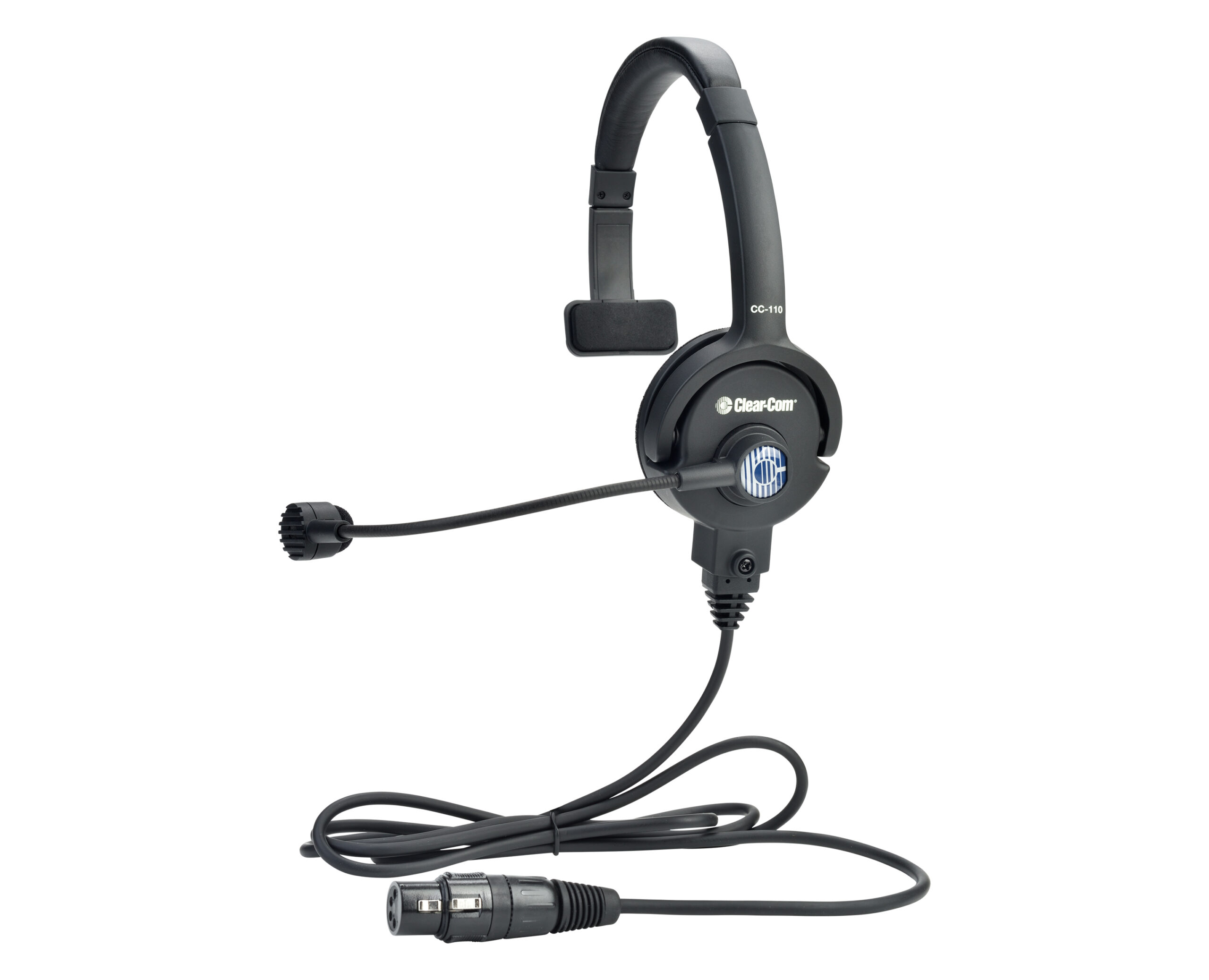

CC-110-X4 | Single On Ear 4 Pin Female XLR Cardioid Headset

Headphone

Type: Closed-back

Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil

Frequency Response: 20Hz v- 20kHz

Impedance: CC-110: 400Ω ±30%; at 1kHz typical

CC-220: 200Ω ±30%; at 1kHz typical

Microphone

Element: Dynamic

Driver: 15mm, neodymium magnet

Polar Pattern: Cardioid

Frequency Response: 250Hz – 20kHz

Impedance: CC-110: 200Ω ±30%; at 1kHz typical

CC-220: 200Ω ±30%; at 1kHz typical

Power

Maximum: 500mW

Sensitivity

Microphone Open Circuit Sensitivity: -64dB ±3.5dB; (0dB=1V/1Pa, at 1kHz , typical)

Headphone Sensitivity

CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical

CC-220: 96dB ±3dB (SPL) / 1mW,at 1kHz typical

Connector

Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR

Dimensions

Packaging for CC-110 and CC-220: 6.7 x 8 x 3.5in (WxHxD)

(170 x 205 x 90mm)

Weight

CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW

CC-220: 6.8oz (195g) without 8-pin cable assembly and M3*18mm SCREW
