Hard Drive Accessories, HDD Docking Stations
Dual-Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5″ SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading
Availability:
2 in stock
- HARD DRIVE DOCKING STATION: This 2-bay hard drive dock delivers instant access to your 2.5/3.5″ SATA hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 2 (10 Gbps). Tool-less design enables easy drive hot-swapping.
- DRIVE COMPATIBILITY: Supports 2.5/3.5″ SATA HDDs & SSDs of any capacity | OS Independent | Backwards compatible w/ SATA I/II | IDE adapter (SAT2IDEADP) sold separately | Includes 3ft USB-A cable and universal power adapter
- PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 host connection. Drive bays with 5,000-cycle insertion rating for maximum durability.
- SPECS: 2-Bay Hard Drive Dock | SATA I/II/III (1.5/3/6 Gbps) | USB 3.2 Gen 2 (10 Gbps) Host Connection | Tool-less/Tray-less Design | Hot-Swappable Drive Bays | Top-Loading/Toaster-Style with Eject Buttons | LED Activity Lights
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
$122.41
2 in stock
CompareHarness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps – twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5″ or 3.5″ IDE hard drive into a SATA hard drive dock.
The SDOCK2U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Perfect for system builders and IT professionals who need quick access to drives for imaging
- Back up data quickly to an external drive for archiving
- Transfer data from one hard drive to another
- Convenient for technicians who test or benchmark multiple hard drives
- Easily take backup data to an offsite location for safekeeping
Compatibility
OS independent; No software or drivers required
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
2 – SATA Data & Power Combo (7+15 pin)
Host Connectors
1 – USB 3.2 USB Type-B (9 pin, Gen 2, 10 Gbps)
Environmental
Operating Temperature
5°C to 35°C (35°F to 95°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Humidity
20% ~ 80% RH
Hardware
Interface
USB 3.2 Gen 2 (10 Gbps)
Number of Drives
2
Drive Size
2.5in & 3.5in
Compatible Drive Types
SATA
Drive Installation
Removable
Number of 2.5 inch bays
2
Number of internal 3.5 inch bays
2
Fan(s)
No
Chipset ID
ASMedia – ASM1352R
Indicators
LED Indicators
1 – Power
2 – HDD Activity
Packaging Information
Package Height
4.7 in [12.0 cm]
Package Length
8.3 in [21.0 cm]
Shipping (Package) Weight
2.0 lb [0.9 kg]
Package Width
7.5 in [19.0 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
10 Gbps
UASP Support
Yes
4Kn Support
Yes
Type and Rate
SATA III (6 Gbps)
TRIM Support
Yes
Physical Characteristics
Weight of Product
1.1 lb [0.5 kg]
Color
Black
Material
Plastic
Product Length
5.2 in [13.2 cm]
Product Width
5.8 in [14.8 cm]
Product Height
2.8 in [7.0 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 – 240 AC
Input Current
1.3A
Output Voltage
12V DC
Output Current
3000 mA
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36
Software
OS Compatibility
OS independent; No software or drivers required
Special Notes / Requirements
Note
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

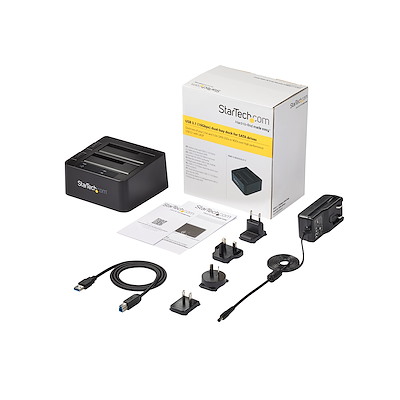

What’s in the Box
Included in Package
1 – USB 3.1 Dual-drive HDD Dock
1 – USB 3.1 A-to-B Cable – 41 inches
1 – Universal Power Adapter – 49.5 inches (cable)
4 – Power Adapter Plugs (NA/EU/UK/AUS)
1 – Quick Install Guide
