Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand
Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand - Image 2
Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand - Image 3
Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand - Image 4
Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand - Image 5
Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand - Image 6

Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

Availability:

2 in stock
Add to wishlist
Compare
  • SAVE SPACE: You can free up valuable desk space by positioning the USB-A multi monitor dock vertically on your work surface using the included (optional) stand
  • DUAL-DISPLAY FUNCTIONALITY: The dual-DVI docking station supports resolutions up to 2048×1152; To ensure maximum compatibility, two display adapters (DVI to VGA and DVI to HDMI) are included
  • SUPPORTS ALL YOUR PERIPHERALS: This docking station features five USB 3.0 (USB 3.2 Gen 1 5Gbps) ports; The dock also has a GbE port and 3.5 mm headset combo jack for audio input and output

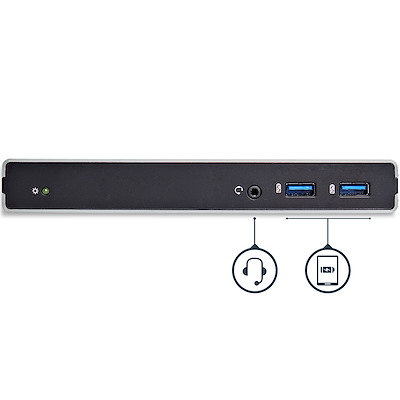

  • FAST-CHARGE CAPABILITY: The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2); These ports charge your devices with or without a laptop being connected to the dock
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this universal USB 3.0 Dock is backed for 3 years, including free lifetime 24/5 multi-lingual technical assistance

$106.06

2 in stock

Compare
This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

Display Flexibility

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048×1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Display Flexibility

Powerful Connections and Fast Device Charging

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Device Charging

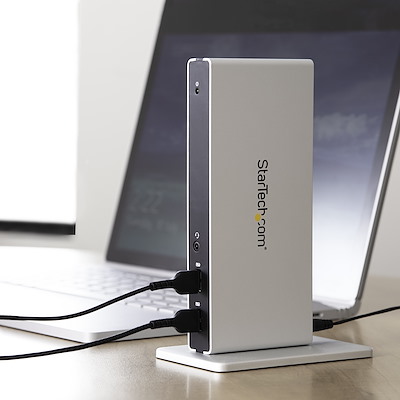

Save Desktop Space

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Applications

  • Use dual displays to work on multiple documents simultaneously in office applications
  • View multiple monitors at a glance, in financial or investment firms
  • Create a quick-connect workstation that supports your existing HDMI, VGA, and DVI monitors
SKU: USB3SDOCKDD Category: Tag:

Specifications

Warranty Information
Warranty
3 Years
Connector(s)
Connector Type(s)
1 – DVI-D (25 pin)
1 – DVI-I (29 pin)
2 – USB 3.2 Type-A (9 pin, Fast-Charge)
3 – USB Type-A (9 pin, 5 Gbps)
1 – RJ-45
1 – 3.5 mm Mini-Jack (4 Position)
1 – USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
5~85% RH
Hardware
4K Support
No
Fast-Charge Port(s)
Yes
Displays Supported
2
Bus Type
USB 3.2 Gen 1 (5Gbps)
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB Battery Charging Specification Rev. 1.2
USB 3.0 – Hub ports support USB 2.0/1.1 backward-compatibility
Chipset ID
DisplayLink – DL-3900
Genesys Logic – GL3520
VIA/VLI – VL817
Indicators
LED Indicators
1 – Power
Packaging Information
Package Height
3.1 in [7.8 cm]
Package Length
9.0 in [22.8 cm]
Shipping (Package) Weight
2.0 lb [0.9 kg]
Package Width
6.6 in [16.8 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Analog Resolutions
2048×1152 (VGA)
Maximum Digital Resolutions
2048×1152 (Dual-Link DVI/HDMI)
Lower resolutions are also supported.
Type and Rate
USB 3.0 – 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Physical Characteristics
Weight of Product
10.1 oz [285.0 g]
Color
Black & Silver
Material
Aluminum and Plastic
Cable Length
39.4 in [1000 mm]
Product Length
3.3 in [8.3 cm]
Product Width
0.9 in [2.3 cm]
Product Height
7.0 in [17.8 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 – 240 AC
Input Current
0.7A
Output Voltage
12V DC
Output Current
2A
Center Tip Polarity
Positive
Plug Type
H
Power Consumption (In Watts)
24W
Software
OS Compatibility
Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10, 11
macOS 10.6 – 10.12, 10.14 – 10.15, 11.0, 12.0, 13.0, 14.0
Chrome OS™ v55+
Special Notes / Requirements
System and Cable Requirements
USB 3.0 port interface and USB 3.0 cable to connect the Laptop Docking Station to a host computer (USB 3.0 host cable included)
Note
HDMI and VGA adapters included
VGA adapter can only be used on the DVI-I (29-pin) port
The DVI-I connector supports DVI-I signaling (digital and analog)
This USB docking station is not intended for graphical intensive applications, such as gaming

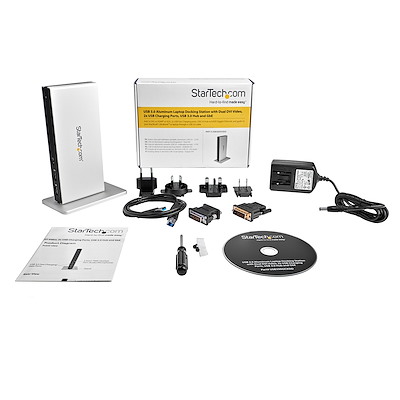

What’s in the Box
Included in Package
1 – USB 3.0 Laptop Docking Station
1 – 1m USB 3.0 Cable
4 – Rubber Feet
1 – Stand
2 – Stand Screws
1 – Screwdriver
1 – DVI to VGA Adapter
1 – DVI to HDMI Adapter
1 – Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 – Driver CD
1 – Instruction Manual
