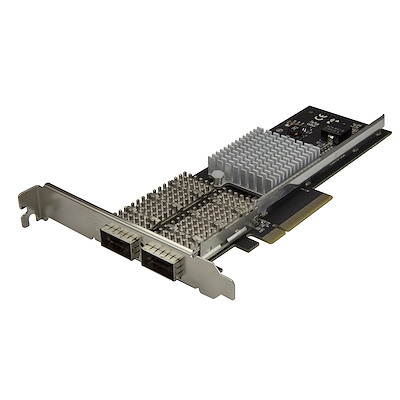

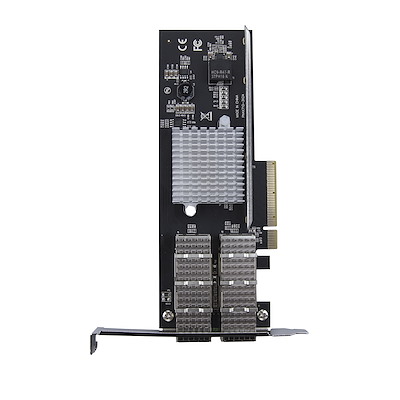

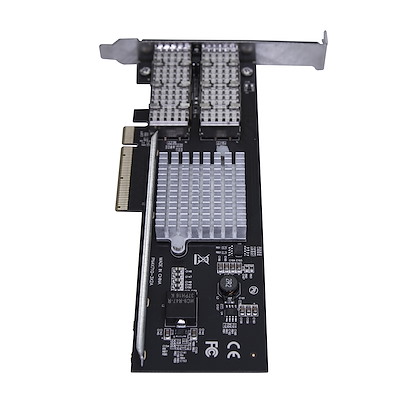

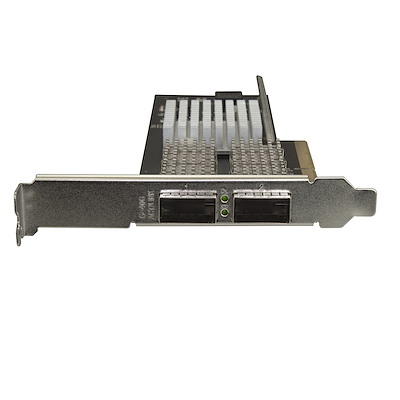

Dual Port 40G QSFP+ Network Card – Intel XL710 Open QSFP+ Converged Adapter – PCIe 40 Gigabit Ethernet Server NIC – 40GbE Fiber Optic LAN Card – Dell PowerEdge HPE ProLiant

Availability:

2 in stock


  • DUAL QSFP+ NETWORK CARD: Two port 40GbE converged network adapter for redundancy or can be aggregated for demanding applications; Data Center Bridging (DCB), virtualization & iSCSI offload support
  • TECH SPECS: 2x 40 Gbps Open QSFP+ Ports |MSA Compliant | Intel XL710 Chip |MMF & SMF Fiber Support | PCIe 3.0 x8 | PXE Boot | 9K Jumbo Frames | VLAN | Full & low profile | 2 Yr. Warranty
  • TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance of this 40 Gigabit Ethernet Card; compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem
  • FLEXIBLE: Use MSA compliant QSFP+ or direct attach cable (DAC) supporting different fiber types w/this 40GbE PCI Express NIC; works w/ leading brands of switches, routers, & devices like Cisco & HPE
  • WIDE OS COMPATIBILITY: Network Interface Card works w/ Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions)
  • CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities

$618.12

2 in stock

Compare
Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Increase your network speed

This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.

Add redundant connections in zero-downtime environments

With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

Add scalable network connections

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance your network capabilities

The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

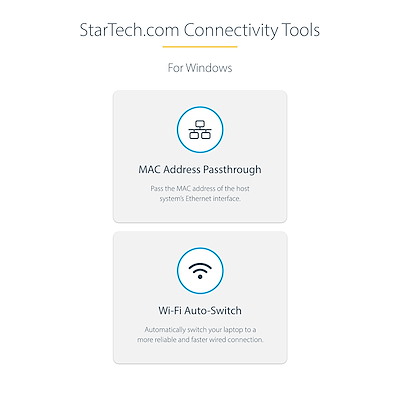

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Mac Address Pass-Through Utility: To improve network security.
  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Add ultra-fast 40Gbps network connectivity to database, file or application servers and high-performance workstations
  • Transmit full 40Gpbs network speeds to a remote terminal over longer distance than copper cabling
  • Ideal for agile and high-demand data centers that require data security, no downtime, and infrastructure updates
  • Supports secure setups – a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Create a video/audio editing console with 40Gbps access to network storage
  • Ideal for remote embedded industrial monitoring system, and high-speed video surveillance

Specifications

Warranty Information
Warranty
2 Years

Connector(s)
Connector Type(s)
1 – PCI Express x8
2 – QSFP+

Environmental
Operating Temperature
0°C to 57°C (32°F to 134.6°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5~95% RH

Hardware
Ports
2
Bus Type
PCI Express
Card Type
Standard Profile
Industry Standards
IEEE 802.3ba 40GBASE-SR4
IEEE 802.3ba 40GBASE-LR4
PCI Express Rev 3.0, using PCIe x8 (or higher) slot
Chipset ID
Intel – XL710-BM2

Indicators
LED Indicators
2 – Link/Activity (green)

Packaging Information
Shipping (Package) Weight
7.9 oz [224.0 g]
Package Quantity
1
Package Length
8.0 in [20.4 cm]
Package Width
5.7 in [14.6 cm]
Package Height
1.6 in [40 mm]

Performance
Compatible Networks
40 Gbps
Auto MDIX
No
PXE
No
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Supported Protocols
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)

Physical Characteristics
Color
Black
Material
Steel
Product Length
7.1 in [18.1 cm]
Product Width
4.8 in [12.1 cm]
Product Height
0.8 in [2.1 cm]
Weight of Product
4.5 oz [127 g]

Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 2.6.24 and up – LTS Versions only

What’s in the Box
Included in Package
1 – network card
1 – low-profile bracket
1 – quick-start guide
