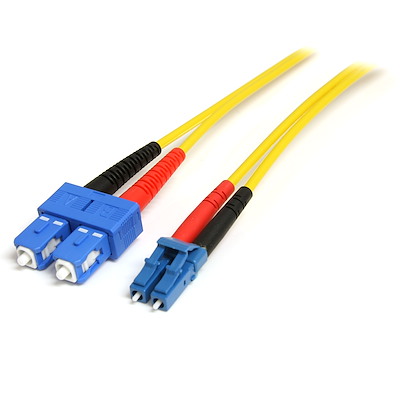

Fiber Optic Cable – Single-Mode Duplex 9/125 – LSZH – LC/SC – 10 m

Availability:

2 in stock

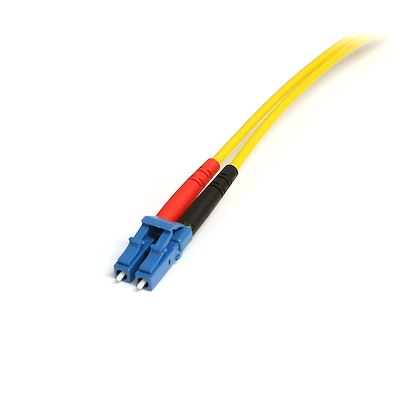

  • 1x LC SM male connector
  • 1x SC SM male connector
  • OS1 (9/125)
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors

$24.94

2 in stock

Compare
The SMFIBLCSC10 10m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Applications

  • Use in Gigabit Ethernet and Fiber Channel applications
  • Ideal solution for data applications requiring high speed data transmission
  • Broadband systems
  • Telecommunication/Data communication
  • Fiber Connections in Patch Panels, Hubs, Switches, Routers

Specifications

Warranty Information
Warranty
Lifetime

Connector(s)
Connector A
1 – Fiber Optic LC Duplex
Connector B
1 – Fiber Optic SC Duplex

Environmental
Humidity
0~90% RH
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Hardware
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
Fiber Size
9/125

Packaging Information
Package Height
1.1 in [28.0 mm]
Package Length
8.7 in [22.0 cm]
Package Width
7.9 in [20.0 cm]
Package Quantity
1
Shipping (Package) Weight
5.0 oz [143.0 g]

Performance
Maximum Data Transfer Rate
10 Gbps
Cable Rating
1Gbps / 10Gbps
Fiber Classification
OS1
Type
Single Mode

Physical Characteristics
Product Height
0.0 in [0.0 cm]
Product Width
0.0 in [0.0 cm]
Color
Yellow
Cable Length
32.8 ft [10 m]
Product Length
32.8 ft [10.0 m]
Weight of Product
4.7 oz [134.0 g]

What’s in the Box
Included in Package
1 – 10m Single Mode Duplex Fiber Patch Cable LC-SC
