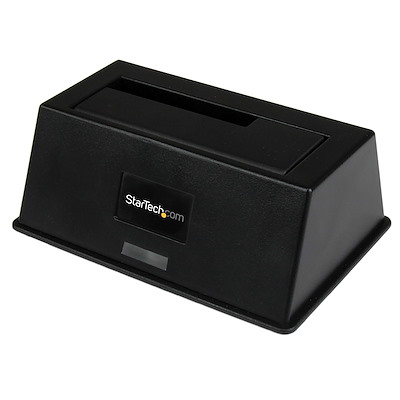

Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay
Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay - Image 2
Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay - Image 3
,

Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5″ SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

Availability:

2 in stock
Add to wishlist
Compare
  • HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5″ SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 1 (5 Gbps) or eSATA
  • DRIVE COMPATIBILITY: Supports 2.5/3.5″ SATA HDDs and SSDs up to 6TB; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately
  • PERFORMANCE: Toolless Top-loading design enables quick hot-swapping of idle drives; Host connection over eSATA delivers full SATA III (6 Gbps) drive performance; Backwards compatible with previous SATA & USB versions; No software / drivers required
  • SPECS: Single-Bay Hard Drive Dock; SATA I/II/III; eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay; Power and Activity LED Indicators; Includes 3ft (1m) USB 3.2 (5 Gbps) Type-A Cable and Universal Power Adapter
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance

$58.99

2 in stock

Compare
The versatile SDOCKU33EBV UASP-enabled USB 3.0 / eSATA docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD), with the option to connect through either USB or eSATA.For convenient compatibility and time-saving performance, the SDOCKU33EBV docking station can be connected through USB 3.0, with support for full USB 3.0 bandwidth (5 Gbps) as well as UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. For fast performance and efficient data transfers, the dock also supports the full SATA III bandwidth of 6 Gbps when connected through eSATA. See our UASP testing results below for further details.

With support for large capacity SATA I/II/III drives (tested up to 6TB), as well as 2.5in or 3.5in drives, this HDD/SSD docking station makes it easy to maximize the storage/backup capabilities of your computer using virtually any SATA drive.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33EBV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33EBV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Applications

  • Add quick access to drives for data recovery or retrieval
  • Backup data quickly to an external data archiving
  • Test or benchmark different hard drives and swap between them
  • Quickly access drives for imaging
SKU: SDOCKU33EBV Categories: , Tags: , , , ,

Compatibility

  • OS Independent
OS independent; No software or drivers required

Specifications

Warranty Information
Warranty
2 Years

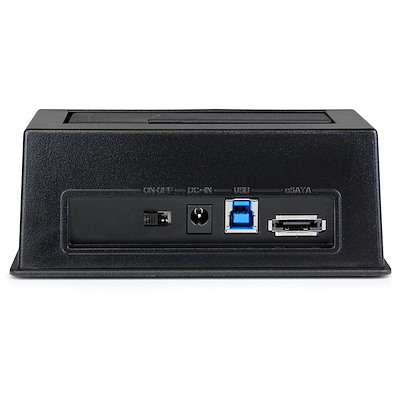

Connector(s)
Drive Connectors
1 – SATA Data & Power Combo (7+15 pin)
Host Connectors
1 – USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
1 – eSATA (7 pin, Data)
Environmental
Operating Temperature
5°C to 35°C (41°F to 95°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Humidity
20%RH ~ 80%RH
Hardware
Interface
USB 3.0 & eSATA
Bus Type
USB 3.0 & eSATA
Number of Drives
1
Drive Size
2.5in & 3.5in
Compatible Drive Types
SATA
Drive Installation
Removable
Fan(s)
No
Chipset ID
JMicron – JMS561
Indicators
LED Indicators
1 – Power/Activity
Packaging Information
Package Height
6.8 in [17.2 cm]
Package Length
6.4 in [16.2 cm]
Shipping (Package) Weight
1.6 lb [0.7 kg]
Package Width
3.8 in [9.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
6 Gbps (eSATA)
5 Gbps (USB 3.0)
Type and Rate
USB 3.0 – 5 Gbit/s
UASP Support
Yes
4Kn Support
Yes
Type and Rate
SATA III (6 Gbps)
Max Drive Capacity
Currently tested with hard drives up to 6TB 7200 RPM
Hot Swap Capability
Yes
Physical Characteristics
Color
Black
Product Length
5.5 in [13.9 cm]
Product Width
3.6 in [9.2 cm]
Product Height
2.1 in [5.3 cm]
Weight of Product
11.5 oz [325.0 g]
Power
Power Source
AC Adapter Included
Input Voltage
100 – 240 AC
Input Current
0.8 A
Output Voltage
12V DC
Output Current
2.0 A
Plug Type
M
Power Consumption (In Watts)
24
Software
OS Compatibility
OS independent; No software or drivers required
What’s in the Box
Included in Package
1 – USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP
1 – USB 3.0 Cable
1 – eSATA Cable
1 – Universal Power Adapter (NA / EU / UK / AU)
1 – Instruction Manual
