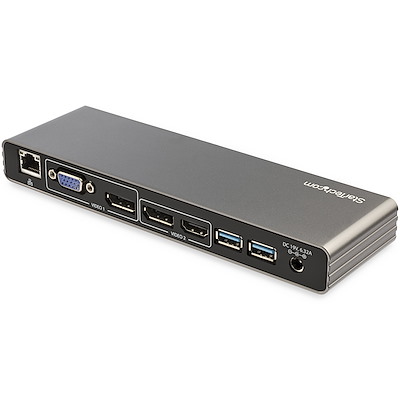

Thunderbolt 3 Dock – Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA – 85W Power Delivery & Charging – 2x USB-A, Ethernet – Mac & Windows

Availability:

2 in stock
Add to wishlist
Compare
  • HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40Gbps); Up to dual 4K 60Hz video; 2x DisplayPort, 1x HDMI, 1x VGA; 2-Port USB-A Hub (USB 3.2 Gen 1 5Gbps); Gigabit Ethernet; 85W Power Delivery
  • FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for up to dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz) or VGA (1080p 60Hz); Video output utilizes direct GPU performance with no software or compression
  • COMPATIBILITY: Compatible with Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
  • EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters; Included 1.6 ft (0.5 m) Thunderbolt 3 host cable; Front facing Thunderbolt 3 host port for hassle-free installation
  • OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring & Windows Layout

$267.89

2 in stock

Compare


Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W Power Delivery

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it’s docked. It provides up to 85W of charging power through Power Delivery.

The TB3DK2DHV is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.

Applications

  • Review or edit images, video or media files on dual 4K monitors
  • Ideal for permanent or mobile workstations, with multiple display options
SKU: TB3DK2DHV Category: Tag:

Specifications

Warranty Information
Warranty
3 Years
Package Quantity
1
Auto MDIX
Yes
Connector(s)
Connector Type(s)
1 – Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
2 – DisplayPort (20 pin)
1 – HDMI (19 pin)
1 – VGA (15 pin, High Density D-Sub)
2 – USB Type-A (9 pin, 5 Gbps)
1 – RJ-45
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
20~80% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
2
Bus Type
Thunderbolt 3
Industry Standards
Thunderbolt 3
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 – Backward compatible with USB 2.0 and 1.1
Chipset ID
Intel – Alpine Ridge JHL6540
Intel – WGI210AT
ASMedia – ASM1042A
Parade – PS176
Chrontel – CH7517
Packaging Information
Shipping (Package) Weight
3.1 lb [1.4 kg]
Package Length
10.2 in [25.8 cm]
Package Width
7.5 in [19.0 cm]
Package Height
2.7 in [6.8 cm]
Performance
Maximum Data Transfer Rate
40 Gbps (Thunderbolt 3)
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
Dual display – DisplayPort – 4096 x 2160p @ 60Hz
Dual display – 1x DisplayPort + 1x HDMI – 4096 x 2160p @ 60Hz
Dual display – 1x VGA 1920 x 1200 @ 60Hz + 1x DisplayPort 4096 x 2160p @ 60Hz
Dual display – 1x VGA 1920 x 1200 @ 60Hz + 1x HDMI 4096 x 2160p @ 60Hz
Single display – DisplayPort – 4096 x 2160p @ 60Hz
Single display – VGA – 1920 x 1200 @ 60Hz
Single display – HDMI – 4096 x 2160p @ 60Hz
Type and Rate
Thunderbolt 3 – 40 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
Physical Characteristics
Color
Gray
Material
Aluminum
Cable Length
19.7 in [50 cm]
Product Length
7.7 in [19.6 cm]
Product Width
2.3 in [5.9 cm]
Product Height
0.9 in [2.4 cm]
Weight of Product
12.0 oz [340.0 g]
Power
Power Source
AC Adapter Included
Power Delivery
85W
Input Voltage
100 – 240 AC
Input Current
1.8 A
Output Voltage
19V DC
Output Current
6.32 A
Center Tip Polarity
Positive
Plug Type
N
Power Consumption (In Watts)
120W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.12 – 10.15, 11.0, 12.0, 13.0, 14.0
Special Notes / Requirements
System and Cable Requirements
Thunderbolt 3 equipped computer with a Thunderbolt 3 port
Note
A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
What’s in the Box
Included in Package
1 – docking station
1 – Thunderbolt 3 cable 1.6 ft [0.5 m]
1 – universal power adapter
2 – power cords (NA/JP, ANZ)
1 – instruction manual
