Travel A/V adapter: 3-in-1 DisplayPort to VGA DVI or HDMI converter

Availability:

2 in stock
Add to wishlist
Compare
  • Three-in-one adapter – DP to: VGA, DVI, HDMI
  • Support for video resolution up to 1920×1200/1080p
  • Plug-and-play installation
  • Small footprint
  • Portable, lightweight construction

$45.98

2 in stock

Compare

The DP2VGDVHD DisplayPort to VGA, DVI or HDMI converter offers a compact 3-in-1 solution for connecting your DP-equipped  desktop, laptop or Ultrabook™ computer to a VGA, DVI, or HDMI display.Compatible with almost any display, television or projector, this versatile converter provides the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office. With three of the most common interfaces to choose from, the converter equips you to walk into any boardroom ready to connect to an available display device, even if you don’t know what connection ports will be available.

Connect to any available display device

For seamless connections from your DisplayPort-equipped computer, the converter supports video resolutions up to 1920×1200/1080p, so you can convert a DisplayPort video source to VGA, HDMI, or DVI without sacrificing video quality.

The DisplayPort converter offers a small footprint and lightweight design that makes it easy to keep on hand without it taking up too much space in your laptop bag.

Maximize portability

The DP2VGDVHD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Applications

  • Keep the adapter with you while traveling, to connect to virtually any display
  • Connect your BYOD laptop/Ultrabook to a provided HDMI, DVI, or VGA display at work

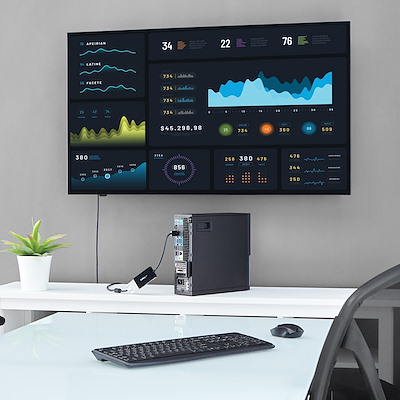

  • Connect a DVI, VGA, or HDMI display to your DisplayPort computer, to use as a secondary monitor
SKU: DP2VGDVHD Categories: , Tag:

Specifications

Warranty Information
Warranty
3 Years
Connector(s)
Connector A

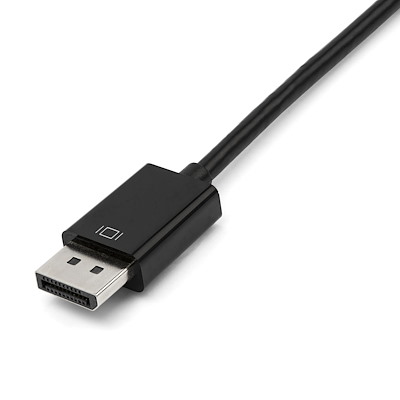

1 – DisplayPort (20 pin)
Connector B
1 – DVI-D (25 pin)
1 – HDMI (19 pin)
1 – VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Humidity
10%-85%RH
Hardware
Active or Passive Adapter
Active
AV Input
DisplayPort – 1.2
AV Output
DVI-D – Single-Link
HDMI – 1.4
VGA
Audio
Yes
Chipset ID
NXP Semiconductors PTN3392BS
Parade Technologies Inc. PS8312
Packaging Information
Package Height
0.7 in [1.7 cm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
2.6 oz [73.0 g]
Package Width
7.9 in [20.0 cm]
Package Quantity
1
Performance
Audio Specifications
DVI – No Audio Support
HDMI – 7.1 Channel Audio
VGA – No Audio Support
Maximum Cable Distance To Display
49.9 ft [15.2 m]
Maximum Analog Resolutions
1920×1200/1080p
Maximum Digital Resolutions
1920×1200/1080p
Wide Screen Supported
Yes
Physical Characteristics
Weight of Product
2.3 oz [65.0 g]
Color
Black
Cable Length
5.9 in [15 cm]
Product Length
10.5 in [26.6 cm]
Product Width
1.8 in [4.5 cm]
Product Height
0.8 in [2.0 cm]
Special Notes / Requirements
Note
Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
The HDMI port is a passive port.
The DVI-D is a passive port.
The VGA port is an active port.
Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling

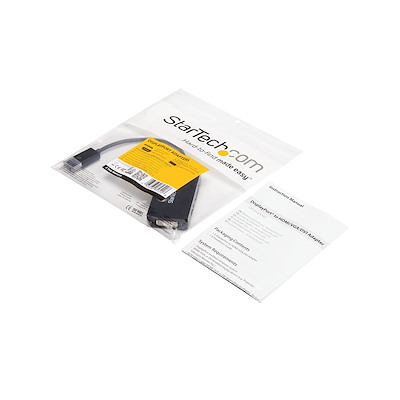

What’s in the Box
Included in Package
1 – DisplayPort to HDMI/VGA/DVI Adapter
1 – Installation Guide
