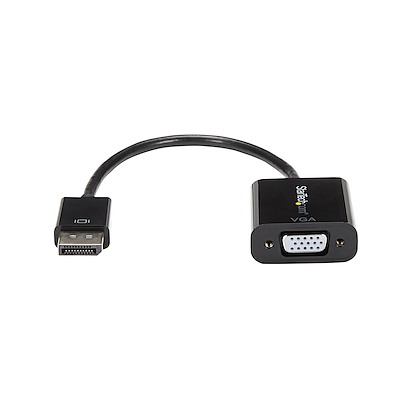

DisplayPort to VGA Adapter – Active DP to VGA Converter – 1080p Video – DP/DP++ Source to VGA Monitor Cable Adapter – DP to VGA Adapter Dongle Digital to Analog – DP 1.2 to VGA

Availability:

2 in stock


  • DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048×1152, 1920×1200 & 1920×1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display | 3.9″ (10cm) attached cable
  • COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
  • CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA video adapter; Sleek and compact design makes it easy to travel to and from office or home
  • SCREW LOCKING VGA: Non-latching DP connector is easy to disconnect from a hard to reach source | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection | Tested with VGA cables up to 25 ft long
  • EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female | Available in a 5-pack (DP2VGA3X5)

$27.58

2 in stock

Compare

This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.

Crystal-Clear Picture Quality

With support for video resolutions up to 1920×1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.

Works with Your Legacy VGA Displays & Projectors

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.

Designed for Maximum Portability

This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.

For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.

DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.


Applications

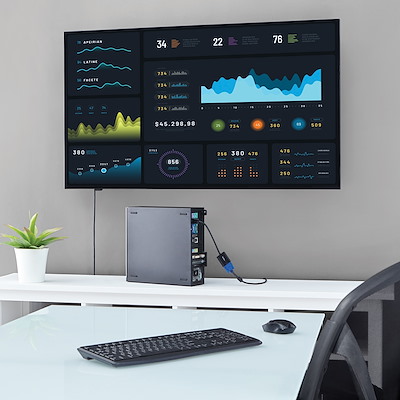

  • Add a secondary display to your workstation by connecting a VGA monitor to your DisplayPort device
  • Deliver professional, high-definition video presentations in the office or while traveling
  • Connect your BOYD laptop to a VGA office hot desk or boardroom projector

Specifications

Warranty Information
Warranty
3 Years

Connector(s)
Connector A
1 – DisplayPort (20 pin)
Connector B
1 – VGA (15 pin, High Density D-Sub)

Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10%-85% RH

Hardware
Active or Passive Adapter
Active
AV Input
DisplayPort – 1.2
AV Output
VGA
Audio
No
Chipset ID
Analogic ANX9833

Packaging Information
Package Height
0.7 in [18.0 mm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
1.4 oz [41.0 g]
Package Width
7.9 in [20.0 cm]
Package Quantity
1

Performance
Audio Specifications
VGA – No Audio Support
Maximum Analog Resolutions
1920×1200
Wide Screen Supported
Yes
MTBF
6,082,643 Hours

Physical Characteristics
Weight of Product
1.1 oz [32.0 g]
Color
Black
Material
Plastic
Cable Length
3.9 in [100 mm]
Product Length
9.1 in [23.0 cm]
Product Width
1.5 in [3.7 cm]
Product Height
0.6 in [1.4 cm]

What’s in the Box
Included in Package
1 – DisplayPort to VGA Adapter
