Audio-Video Cables, Cables

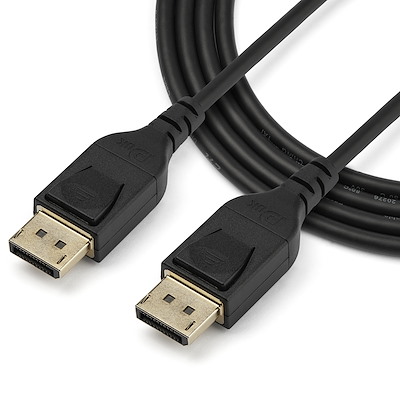

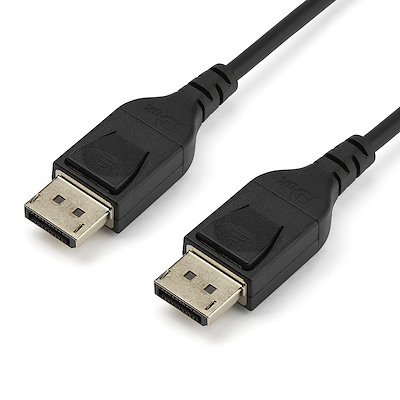

VESA Certified DisplayPort 1.4 Cable – 8K 60Hz HBR3 HDR – 3 ft Super UHD DisplayPort to DisplayPort Monitor Cord – Ultra HD 4K 120Hz DP 1.4 Slim Video Cable M/M DP Connector
Availability:
2 in stock
- HIGH PERFORMANCE CABLE: 3.3 ft (1 m) VESA Certified cable supports 8K 60Hz (7680×4320), 4K 120Hz (3840×2160), 32.4Gbps bandwidth, HDR10, HBR3, 32 Ch audio (5.1/7.1/Dolby TrueHD/Atmos), MST, GTC for precise audio channel timing; future-proof upgrade for 8K
- RELIABLE DESIGN: Built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil with Braid (85% coverage) provide EMI shielding; Latching DP connectors prevent accidental disconnection
- DURABLE: PVC jacket of this slim DisplayPort monitor cable absorbs stress of frequent bends protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish, Lifetime Warranty
- APPLICATIONS: Ideal for home/offices/boardrooms/classrooms, works with your professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with UHD monitors/displays
- SPECS: 1 m (3.3 ft) | Black | DisplayPort 1.4 | DP Male to Male | 34 AWG | PVC Jacket | Al-Mylar foil with 85% Braid | HBR 3, DSC 1.2, HDCP 2.2, 3D Stereo (2560x1600p 120Hz) | Compatible with DP 1.1/1.2/1.3 (1080p/4K) cards & adapters | Lifetime Warranty
Price range: $14.87 through $34.70
CompareThis cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.
The Superior Performance of DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features:
- High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
- High Dynamic Range (HDR) for higher contrast ratio and vivid colors
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- 32 Uncompressed Digital Audio Channels
Flexible Cable with Reliable Latched Connectors
The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
DP14MM1M is backed by a StarTech.com lifetime warranty.
Applications
- Delivering visually enriched presentations
- Displaying crisp digital signage walls
- Creating eye-catching visuals for photography, videography, cinematography
- Producing lifelike gaming
| Length | 10.0 ft [3.0 m], 3.0 ft [0.9 m], 6.0 ft [1.8 m] |
|---|
Specifications
Warranty Information
Warranty
Lifetime
Connector(s)
Connector A
1 – DisplayPort (20 pin)
Connector B
1 – DisplayPort (20 pin)
Hardware
Number of Conductors
19
Connector Plating
Gold
Cable Jacket Material
PVC – Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid
Fire Rating
VW-1 Rated
Packaging Information
Shipping (Package) Weight
2.4 oz [69.0 g]
Package Quantity
1
Package Length
8.7 in [22.0 cm]
Package Width
7.8 in [19.8 cm]
Package Height
0.0 in [1.0 mm]
Physical Characteristics
Color
Black
Connector Style
Latching
Wire Gauge
34 AWG
Product Length
39.4 in [100.0 cm]
Product Width
0.5 in [1.2 cm]
Product Height
0.4 in [1.0 cm]
Weight of Product
2.1 oz [59.0 g]

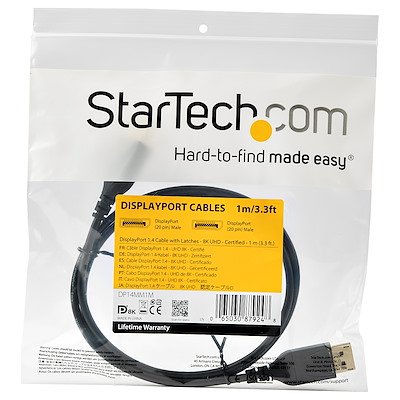

What’s in the Box
Included in Package
1 – DisplayPort Cable
Based on 0 reviews
