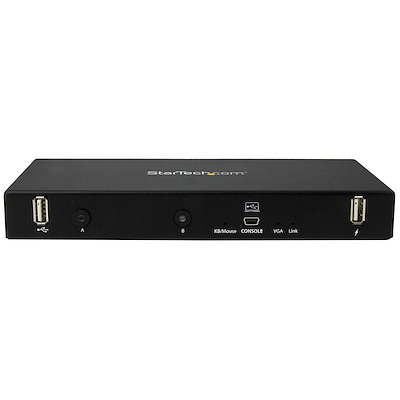

2-port KVM Console Adapter - Laptop-to-Server
2-port KVM Console Adapter - Laptop-to-Server - Image 2
2-port KVM Console Adapter - Laptop-to-Server - Image 3
2-port KVM Console Adapter - Laptop-to-Server - Image 4

2-port KVM Console Adapter – Laptop-to-Server

Availability:

2 in stock
Add to wishlist
Compare
  • Save cost with an innovative design that uses your laptop as a 2-port KVM console
  • Hassle-free 2-port server access with intuitive design and software
  • Intuitive software included for laptop-to-server file transfers and screen capturing
  • Supports resolutions up to 1920×1200
  • Mounting hardware included

$682.89

2 in stock

Compare
This 2-port USB crash-cart adapter gives you KVM control of your servers, directly from your laptop. It’s a convenient solution for routine diagnostics, maintenance and updates for small-scale server applications, giving you full console access to servers located in small spaces, or congested server racks. It’s also perfect for environments where a fixed-installation console server isn’t feasible, such as in a server closet or wall-mounted server rack.

Maximize your IT budget, minimize your hassle

The USB crash-cart adapter offers a cost-effective and convenient way to access and control your servers. At a fraction of the cost of a rack-mounted LCD console, installing this easy-to-use adapter means not having to wheel around a conventional server-room crash cart.

Instead of the expense of a dedicated rack console, or hassle of a full-scale crash cart, you can multi-purpose your laptop and save your IT budget by using equipment you already have on hand.

Streamline your server maintenance

Using the included software, the adapter can do things that regular KVMs can’t. The software provides a robust and flexible interface that lets you view your servers on your full laptop screen, without scroll bars, and lets you reduce the viewing window so that you can work on your laptop and servers at the same time to maximize your productivity.

The software also supports file transfers between your laptop and the servers, which is perfect for server software updates and patches. The adapter’s software also offers video capture support, so you can record your activity on the servers as video, which you can later use for verification or instructional purposes.

Get up and running in minutes

The USB crash cart is easy to install, using the included mounting brackets and 2-in-1 USB and VGA cables. Installing the included software on your laptop is also easy, using the included pre-loaded USB key.

The SV231USBLC is backed by a 2-year StarTech.com warranty, and free lifetime technical support.

Applications

  • Access your servers using your laptop, to avoid the expense of a rackmount console
  • Gain full console access to servers located in small spaces, or congested server racks where a fixed-installation console is not feasible, such as in a server closet or in a wall-mounted server rack
  • Create instructional videos or keep records of your server activities, using screen captures you’ve taken from your servers
SKU: SV231USBLC Category: Tags: ,

Specifications

Warranty Information
Warranty
2 Years
Connector(s)
Console Interface(s)
1 – USB Mini-B (5 pin)
Host Connectors
2 – VGA (15 pin, High Density D-Sub)
2 – USB B (4 pin)
Other Interface(s)
1 – VGA (15 pin, High Density D-Sub)
1 – USB 2.0 Type-A (4 pin, 480Mbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
80% RH
Hardware
Audio
No
KVM Ports
2
PC Interface
USB
PC Video Type
VGA
Number of Monitors Supported
1
Rack-Mountable
Yes
Daisy-Chain
No
Indicators
LED Indicators
1 – port 1 activity LED
1 – port 2 activity LED
1 – console activity and link LED
1 – keyboard/mouse activity and link LED
1 – host/server video (VGA) Link
Packaging Information
Shipping (Package) Weight
3.2 lb [1.5 kg]
Package Quantity
1
Package Length
14.4 in [36.5 cm]
Package Width
11.3 in [28.8 cm]
Package Height
2.8 in [70 mm]
Performance
IP Control
No
Maximum Analog Resolutions
1920×1200 @ 60Hz
Maximum Number of Users
1
Physical Characteristics
Color
Black
Material
Steel
Cable Length
16.4 in [416 mm]
Product Length
7.7 in [19.5 cm]
Product Width
3.9 in [10 cm]
Product Height
1.0 in [2.5 cm]
Product Depth
10.2 in [260 mm]
Weight of Product
12.9 oz [365 g]
Power
Power Source
AC Adapter Included
Input Voltage
100 – 240 AC
Input Current
0.75 A
Output Voltage
5 DC
Output Current
3 A
Plug Type
N
Power Consumption (In Watts)
15
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10,11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 2.6.x to 4.11 (LTS Versions only)
Special Notes / Requirements
Note
If you’re interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
What’s in the Box
Included in Package
1 – 2-port laptop-to-KVM console adapter
2 – mounting brackets
2 – 2-in-1 USB and VGA cables – 6 ft
1 – USB A to Mini-B cable
1 – USB software key
1 – universal power adapter (NA/EU/UK/AU)
1 – quick install guide
